Comprehensive Guide to IPTables

Must-have commands to use iptables
Display the current tables
Basic Examples of Use
Advanced Usage Examples

What can be done with iptables?

One of its main uses is to analyze traffic to see packet characteristics. On the other hand, they also allow using an important technology, NAT, based on network translation. A device can be configured for NAT with iptables, independently of the Firewall.

Another interesting function is that of packet marking. This is usually done with the use of iptables, so that those packets are passed to other programs, and depending on the tags, they do one thing or another. This is done using mangle which, with the marking, prepares the packets for future processing.

Combine with other services

Iptables are a very powerful and flexible tool and help us a lot in terms of controlling traffic on Linux-based systems. This is very useful to protect the services that depend on these servers. Which we can find in a huge amount of services nowadays. One of the problems that we can find is that to implement them with other services, it is necessary to use code so that everything goes perfectly. Given this, we must bear in mind that any change made incorrectly to the rules can cause all network traffic to be blocked. Therefore, it is always advisable to make use of backup copies, to always have a means of recovery.

Some of the most basic examples of use are:

  • HTTP/HTTPS web servers.
  • SSH servers.
  • SMTP servers.

It is also possible to implement them to have some default policies, such as deny all. Commonly, many places use these predefined policies, instead of creating their own. In this case, we will always have one available that will deny all traffic, and then open only the ports that are explicitly necessary for what we are going to need. In any case, these examples are the most basic ones. Iptables can be implemented in many more and very complex systems, such as traffic rate limiting, IP address blocking, traffic logging, and many more options. It should always be remembered that rules do not persist after reboots. Therefore, it will be necessary to use scripts that we program, and that are executed at the beginning of the session. In this way, they will always be available. The problem with all this is that, for programming, it is necessary to know the code required for these tools.

Calculating iptables

The calculation of iptables, implies that the rules must be defined in a table and that they are applied to incoming and outgoing traffic. To do this, a set of predefined chains must be followed, which are INPUT, OUTPUT and FORWARD. These are responsible for determining the traffic to be analyzed. But to be able to calculate them, the rules of these chains must be known.

  • Source criteria: The conditions for the packets to apply the rules must be established. This includes information such as source and destination IP addresses, as well as ports, protocols, and other characteristics that a packet may have.
  • Action: The action to be taken when certain match criteria are met must be defined. These can be ACCEPT, DROP, and REJECT. Where the packet is accepted, rejected, or even discarded completely.
  • Order of the rules: We must know that the rules are going to be evaluated sequentially. This makes the order in which they are established extremely important since it will determine the action to be performed first. The most advisable is to look for a logical order, and that is consistent with all the other rules that are established.

But that is not all, to calculate the iptables, we must take into account some very important factors.

  • Security: After all, iptables are used to protect systems from possible external threats. Therefore, we must think about security when we are manipulating this type of parameter.
  • Performance: An efficient calculation must be performed, which is fully optimized. This will minimize the number of rules that we will need, reducing also all the possible redundancies that can be generated. This can lead to an over-occupation of rules.
  • Flexibility: iptables are a very flexible feature when it comes to defining what they can do. That is why very specific conditions can be established to be able to adapt to practically any need that the system we are managing has.

Now that we know the main features, let's show the operation and architecture of this firewall.

Operation and architecture

This firewall is based on rules that we will be introducing one after another, its operation is based on applying rules that the firewall itself is in charge of executing. Although at first iptables may seem simple to use, if you want to do it in an advanced way, it is more complicated. Below, you can see a summary diagram of how iptables works.

iptables1

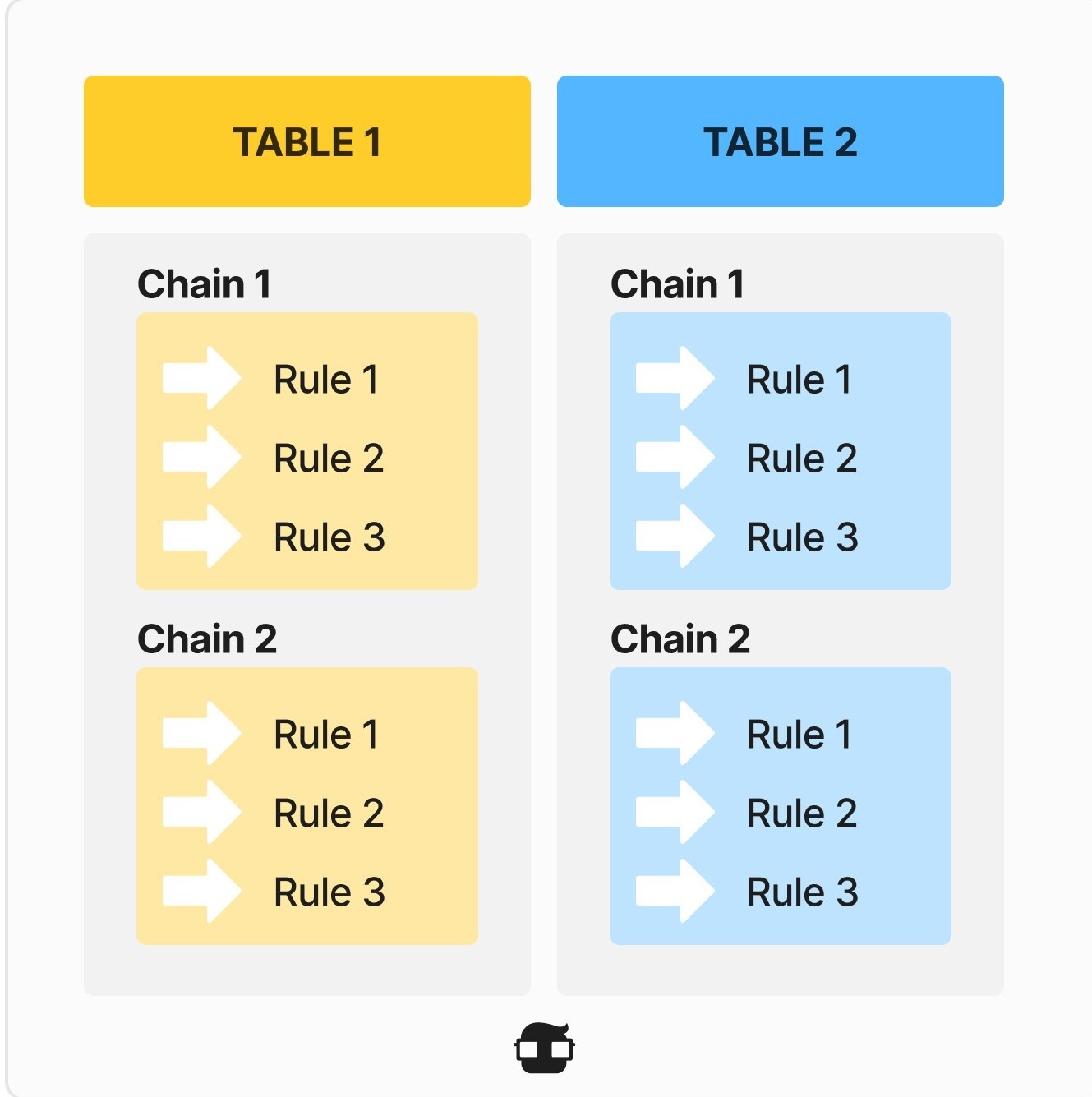

The iptables structure is based on tables, many of them are already created by default. Within the tables we have the chains, which we also have some created by default. Finally, within the chains, we have different rules that we can configure. In the following picture you can see a small scheme of how the firewall architecture would look like:

iptables2

By default, we have a total of four tables:

  • filter table: this is the default table, if we do not define a table to add a rule, it will always go to the filter table. In this table we have a total of three chains by default, depending on what we are interested in, we will have to use one chain or another: INPUT (the packets in the incoming direction, to the firewall itself), OUTPUT (the packets in outgoing direction, from the server to the outside), and FORWARD (used to filter the packets that go from one network interface to another).
  • nat table: this table is in charge of NAT, transforming the private IP into public and the other way around. Within NAT we have three chains: PREROUTING (it alters the packets before routing them, here the DNAT or port forwarding is done), POSTROUTING (it alters the packets after routing them, here the SNAT or MASQUERADE is done), and OUTPUT (packets generated by the firewall that will go through the configured NAT).
  • mangle table: this table is in charge of altering the packets, it is where the QoS is configured for the quality of service, altering TCP headers, etc. In this table, we have the five chains: PREROUTING, INPUT, FORWARD, OUTPUT, POSTROUTING.
  • Raw table: this table is not usually used because the packets travel without connection status. We have the PREROUTING and OUTPUT chain.

To do all this, it uses some filtering rules that will indicate which packets will be accepted and which will be rejected or directly omitted. These data chains are formed by:

  • INPUT: It refers to the packets arriving in the system.
  • OUTPUT: Filters the packets leaving our network.
  • FORWARD: Does not indicate the router traffic that is sent to other equipment.

In the following image you can see a small summary of the chains that we have in the different tables:

iptables3

The operation when adding a rule is as follows:

  • The rules we add to the chains always have a target (-j in the rule).
  • When the firewall receives a packet, it checks if the packet matches a rule we have added. If it matches, the target order is executed, if not, it moves on to the next rule until the end of the chain.
  • The rules are checked in a sequential order, from the first rule to the last. The order is very important, if we block everything first and then allow something more specific, we will block all traffic and the more specific rule will not be checked.
  • In the case that no rule satisfies the packet, then the policy of the chain we have (global rule) will be used.

The objectives that the different rules have are as follows:

  • ACCEPT: accepts the packet and passes it to the next level, a web server, SSH, FTP, etc.
  • DROP: blocks the packet and does not pass it on to the next level.
  • QUEUE: is a special target, which passes the packet in a queue intended for user-space processing. This can be used to use other external programs.
  • RETURN: has the same effect as if we had reached the end of the chain. If the rule was in a default chain, then the policy of the chain is executed. For a rule that is in a user-defined chain, you exit it, and continue through the chain before the jump, just after the rule you jumped with.

As we have mentioned and concerning the mangle tables, iptables can make use of the NAT, which will have its tables, through which the rules are indicated to perform packet masking, port forwarding, or change some source and destination address. We can find:

  • PREROUTING: Using this, we will indicate the machine to perform certain actions on the packets before they are routed.
  • POSTROUTING: Allows us to perform certain actions before the packet leaves the firewall.
  • OTPUT: Gives us the option of modifying the packets generated in the firewall before they are routed.

Now that we know how it works and its architecture, we are going to see different commands to perform different actions.

Must-have commands to use iptables

The first thing to keep in mind when configuring this firewall is that we need superuser permissions to perform the different commands. They must be executed, otherwise it will not work. The following commands do not carry “sudo” because we assume that you are already with the superuser (sudo su).

In the latest versions of Linux it is not possible to stop the iptables service, to allow all network traffic and leave the firewall with the default parameters, we have to run the following commands:

1sudo iptables -F
2sudo iptables -X
3sudo iptables -t nat -F
4sudo iptables -t nat -X
5sudo iptables -t mangle -F
6sudo iptables -t mangle -X
7sudo iptables -P INPUT ACCEPT
8sudo iptables -P FORWARD ACCEPT
9sudo iptables -P OUTPUT ACCEPT

Once we have done this, we will have the firewall “reset” and allowed everything. Now that we know how to reset it, let's look at the different commands.

Display the current tables

If you want to see the content of the different chains and rules that we have in a certain table, below, you can see what they would look like:

1iptables -t filter --list
2iptables -t mangle --list
3iptables -t nat --list
4iptables -t raw --list

Main arguments and what they are used for

  • -t, --table table: Select the desired table.
  • -A, --append chain rule-specification: Adds a new rule to a specified chain.
  • -C, --check chain rule-specification: Checks if a specific rule exists in a chain.
  • -D, --delete chain rule-specification: Deletes a specified rule from a chain.
  • -D, --delete chain rulenum: Deletes the rule number X in a specified chain.
  • -I, --insert chain [rulenum] rule-specification: Inserts a new rule with a specified number into a chain.
  • -R, --replace chain rulenum rule-specification: Replaces a specified rule in a chain; useful for changing its order.
  • -L, --list [chain]: Displays the list of rules in a chain.
  • -F, --flush [chain]: Removes all rules from a specified chain.
  • -Z, --zero [chain [rulenum]]: Resets the counters of a specified rule to zero.
  • -N, --new-chain chain: Creates a new chain in a specified table.
  • -X, --delete-chain [chain]: Deletes a specified (empty) chain from a table.
  • -P, --policy chain target: Applies the default policy, which is used when no rules in the chains match.
  • -E, --rename-chain old-chain new-chain: Renames a previously added chain.
  • -h: Displays help.
  • -v, --verbose: Provides more detailed output when used with -L.
  • -n, --numeric: Displays IP addresses and port numbers numerically. For example, if filtering port 80, it will show 80 instead of www.
  • -x, --exact: Shows the exact value of packet and byte counters instead of using K, M, or G for the values.
  • --line-numbers: When displaying the list of rules, it shows the exact number of the rule. This is useful for using -D to delete or -I to insert before or after the specified rule.

Main conditions

  • -p, --protocol protocol: Filters the packet by protocol. The specified protocol can be tcp, udp, Idplite, icmp, esp, ah, sctp.
  • -s, --source address[/mask][,…]: Source IP address of the packet. You can specify a single IP or a subnet (using CIDR notation). You can also use hostnames (domains, websites, etc.), but it is not efficient. Multiple source addresses can be specified (e.g., 192.168.1.1,192.168.1.2), but separate rules will be created to satisfy them.
  • -d, --destination address[/mask][,…]: Destination IP address of the packet. It behaves exactly like -s.
  • -m, --match match: Specifies if we want to call extended iptables modules to perform specific actions such as:
    • Specifying multiple source and destination ports (multiport module).
    • Controlling connections (conntrack module).
    • Preventing brute force attacks (recent module, ideal for SSH).
    • Limiting the number of connections (limit and connlimit modules).
    • Specifying IP address ranges (iprange).
  • -j, --jump target: Specifies the target of the rule, such as accepting, rejecting, or even forwarding the packet to another chain for further processing. In any rule, we will always have a -j to indicate what action to take. If we do not include -j, the rule will be added and count the packets, but it will not perform any action. If we use -j to forward to another chain, once processing in the other chain is finished, it will return to the original one.
  • -g, --goto chain: Used to forward traffic to another chain, but unlike jump, it does not return to the original chain where it entered.
  • -i, --in-interface name: Name of the interface where a packet is received. Only applicable for input chains like INPUT, FORWARD, and PREROUTING. If you use '!', it means all interfaces except that one. If you add a '+' at the end of the name, any interface that starts with that name will be matched. For example, if you have eth0, eth1, and eth2, you can match all three by using eth+.
  • -o, --out-interface name: Name of the interface where a packet is sent. Only applicable for output chains like OUTPUT, FORWARD, and POSTROUTING.

Conditions only if you use TCP or UDP

If you use TCP or UDP protocol, you may want to filter by source and/or destination port number, here are the two arguments you can use:

  • --sport, --source-port: Select source ports to allow or deny. If we use ! exclude.
  • --dport, --destination-port: Select destination ports to allow or deny. If using ! exclude.

There are many more conditions for advanced firewall configuration, but we have already listed the basic ones.

Configure the default policy

Policies are used so that when no rule is found within the chain, the default policy is executed. The default policy for all chains is ACCEPT, but there are two options: ACCEPT or DROP.

  • -P, --policy chain target

Examples:

  • iptables -P INPUT DROP
  • iptables -P FORWARD DROP
  • iptables -P OUTPUT DROP

With this we will be left without the internet, so next we must start creating permissive rules.

Below, you can see all the policies we have in the different tables:

  • iptables -t filter -P (INPUT | OUTPUT | FORWARD) (ACCEPT | DROP)
  • iptables -P (INPUT | OUTPUT | FORWARD) (ACCEPT | DROP)
  • iptables -t mangle -P (INPUT | OUTPUT | FORWARD | PREROUTING | POSTROUTING) (ACCEPT | DROP)

View firewall status

The -L parameter shows the rules we have configured. -v provides more information about connections, and -n returns IP addresses and their corresponding ports without going through a DNS server.

  • iptables -L -n -v

This is one of the most important commands for checking the state of the firewall.

Modules (-m match) in iptables

Multiport

This is an iptables extension that gives us the possibility to group similar rules with different TCP and UDP ports into one. Multiport allows to put several ports skipped, and also several ports in a row, the maximum is 15 port arguments. Example:

  • iptables -A INPUT -p tcp -m multiport --dports 80,81,1000:1200 -j ACCEPT

Thanks to this module, we can use several ports in the same rule.

Iprange

iprange allows us to set several source or destination IP addresses at once, without the need to set dozens of rules. It also allows you to set both source and destination IPs, the syntax is as follows:

  • [!] --src-range ip-ip: Specifies the source IP address range.
  • [!] --dst-range ip-ip: Specifies the destination IP address range.

The operation of this rule is quite simple, we just put the start IP and the end IP.

Connlimit

The connlimit module is used to restrict the number of simultaneous connections made by a single IP address, which is ideal for limiting connections to prevent DoS attacks.

  • --connlimit-upto n: Marks if the number of connections is equal to or less than N (then we can allow or deny).
  • --connlimit-above n: Marks if the number of connections is greater than N (then we can allow or deny).
  • --connlimit-mask prefix_length: Marks by subnet range (it is equivalent to a host making 2 connections, versus two hosts from the same subnet each making 1 connection).
  • --connlimit-saddr: This applies the limitation to the source group; this is the default if nothing is specified.
  • --connlimit-daddr: Applies the limitation to the destination group.

Example:

If we want to allow only two SSH connections per client, you would use:

  • iptables -A INPUT -p tcp --dport 22 -m connlimit --connlimit-above 2 -j DROP

However, we can also create a complementary rule to accept up to 2 connections:

  • iptables -A INPUT -p tcp --dport 22 -m connlimit --connlimit-upto 2 -j ACCEPT

Conntrack

This module is used to track connections, it is used to manage incoming and outgoing packets before and after the connection is established. Within this module there are several options, but the most important is -ctstate that allows us to accept or deny different types of packets. Within ctstate we have several states, the most important of which are the following:

  • INVALID: The received packet is invalid and does not belong to any connection.
  • NEW: New connections that are being established, or that are associated with a connection that is not yet bidirectional.
  • ESTABLISHED: Established connections, which first go through NEW as they have received a response.
  • RELATED: A packet that is related to an existing connection but is not part of it, such as passive FTP.

Example:

Imagine we want to access any site, but we don't want anyone to access us:

  • iptables -P INPUT DROP
  • iptables -A INPUT -m conntrack --ctstate ESTABLISHED,RELATED -j ACCEPT

Limit

The limit module allows us to limit traffic, the number of logs written to the syslog, and connection attempts. It has two main arguments:

  • --limit N: This argument specifies the maximum average number of matches per second (N/s), minute (N/m), hour (N/h), or day (N/d) to allow. N specifies the number.
  • --limit-burst N: Indicates the maximum burst that can occur before checking the --limit.

The default value, if nothing is specified, is 3 matches per hour with bursts of 5. Imagine the following rule: iptables -A INPUT -m limit -j LOG, the operation is as follows:

  • The first time this rule is reached, the first five packets are logged.
  • After that, it will take twenty minutes before a packet with this rule is logged again (3 hits in 60 minutes equals 20 minutes, since it is AVERAGE).
  • In addition, every twenty minutes that pass without a packet reaching the rule, the burst will retrieve a packet.
  • If nothing happens for 100 minutes, the burst will be fully recharged; back to the initial situation.

Recent

The recent module is used to limit the number of connections per second at the IP level, this is ideal to protect us from attacks on the SSH port because an attacker will try multiple passwords. For example, if we want to protect our SSH, we could execute the following rule:

  • iptables -A INPUT -p tcp --dport 22 -m conntrack --ctstate NEW -m recent --set --name ssh --rsource
  • iptables -A INPUT -p tcp --dport 22 -m state --state NEW -m recent --rcheck --seconds 60 --hitcount 4 --name ssh --rsource -j DROP

This rule allows only four connection attempts after 60 seconds; it is a “sliding” window.

NAT

This firewall is also in charge of NATing our connection. To NAT our public IP (or interface that has this public IP), we must set:

  • Static SNAT: iptables -t nat -A POSTROUTING -s 192.168.1.0/24 -o eth1 -j SNAT --to IP_eth1
  • Dynamic SNAT: iptables -t nat -A POSTROUTING -s 192.168.1.0/24 -o eth1 -j MASQUERADE

It is normal to use MASQUERADE to do NAT regardless of the IP address of the physical or logical interface.

To open ports, we have to add a rule in the PREROUTING string of the NAT table.

  • iptables -t nat -A PREROUTING -i eth1 -p tcp --dport 22 -j DNAT --to-destination 192.168.1.1

The PREROUTING table also allows us to modify the ports on the fly, so that if we receive packets on port 2121, we can transform it to port 21.

  • iptables -t nat -A PREROUTING -i eth1 -p tcp --dport 2121 -j DNAT --to-destination 192.168.1.1:21

Now that we are familiar with this firewall in detail, let's take a look at the basic and more advanced examples of its use.

Basic Examples of Use

This firewall is very complete, and we have hundreds of commands that we can execute to perform different actions. We are going to put some easy-to-understand examples for a first approach to this firewall.

First, block the IP address 192.168.1.10 from communicating with our server:

  • iptables -A INPUT -s 192.168.1.10 -j DROP

Then, if you want to block the IP addresses 192.168.1.20, 192.168.1.30, 192.168.1.40, 192.168.1.50 from making any communication to our server:

  • iptables -A INPUT -s 192.168.1.20,192.168.1.30,192.168.1.40,192.168.1.50 -j DROP

And to block the entire 192.168.2.0/24 subnet so that they do not make any communication to our server, except for the IP address 192.168.2.20 that would be allowed:

  • iptables -A INPUT -s 192.168.2.20 -j ACCEPT
  • iptables -A INPUT -s 192.168.2.0/24 -j DROP

If you want to block the IP address 192.168.4.50 so that you cannot make any communication:

  • iptables -A OUTPUT -d 192.168.4.50 -j DROP

There is also the option to block the IP addresses 192.168.4.51 and 192.168.4.52 so that we cannot make any communication:

  • iptables -A OUTPUT -d 192.168.4.51,192.168.4.52 -j DROP

And block access to www.google.es from iptables:

  • iptables -A OUTPUT -d [www.google.es](http://www.google.es/) -j DROP

We want to block access to our server from MAC 00:01:02:03:04:05, and allow everything else:

  • iptables -A INPUT -m mac --mac-source 00:01:02:03:03:04:05 -j DROP

We want to allow access to our server to the MAC address 00:01:02:03:03:04:06, and deny everything else:

  • iptables -A INPUT -m mac --mac-source 00:01:02:03:03:04:06 -j ACCEPT
  • iptables -A INPUT -j DROP

There is also the option to block the IP address 192.168.1.10 to prevent ping from our server:

  • iptables -A INPUT -s 192.168.1.10 -p icmp -j DROP

Then, block the IP addresses 192.168.1.20, 192.168.1.30, 192.168.1.40, 192.168.1.50 from pinging our server (in a single rule):

  • iptables -A INPUT -s 192.168.1.20,192.168.1.30,192.168.1.40,192.168.1.50 -p icmp -j DROP

Block the entire 192.168.2.0/24 subnet from pinging our server, except for the IP address 192.168.2.20 which would be allowed:

  • iptables -A INPUT -s 192.168.2.20 -p icmp -j ACCEPT
  • iptables -A INPUT -s 192.168.2.0/24 -p icmp -j DROP

Also, block the IP address 192.168.4.50 so that we cannot ping it:

  • iptables -A OUTPUT -d 192.168.4.50 -p icmp -j DROP

And block the IP addresses 192.168.4.51 and 192.168.4.52 so that we cannot ping them:

  • iptables -A OUTPUT -d 192.168.4.51,192.168.4.52 -p icmp -j DROP

Block access to www.google.es from iptables:

  • iptables -A OUTPUT -d [www.google.es](http://www.google.es/) -p icmp -j DROP

As you can see, the operation is quite simple with IP-based rules with source and destination. We could also use the iprange module to configure a range of IPs:

Block a range of IP addresses ranging from 192.168.5.1 to address 192.168.5.50 from being able to ping from our server:

  • iptables -A OUTPUT -m iprange --dst-range 192.168.5.1-192.168.5.50 -p icmp -j DROP

We can also filter the ICMP protocol in a more advanced way. Let's imagine that we have a user who wants to be able to ping any host, but, however, does not want ANYONE to be able to ping him. How can we do it with iptables if PING itself has bidirectional communication?

  • iptables -A INPUT -s IP -p icmp --icmp-type echo-request -j DROP

Block any incoming access on the eth0 interface (only), therefore allowing eth1 access:

  • iptables -A INPUT -i eth0 -j DROP
  • iptables -A INPUT -i eth1 -j ACCEPT

Block outgoing traffic on the eth0 interface (only), therefore allowing eth1 access:

  • iptables -A OUTPUT -o eth0 -j DROP
  • iptables -A OUTPUT -o eth1 -j ACCEPT

Allow any incoming and outgoing traffic on eth0, and deny any incoming and outgoing traffic on eth1:

  • iptables -A INPUT -i eth0 -j ACCEPT
  • iptables -A OUTPUT -o eth0 -j ACCEPT
  • iptables -A INPUT -i eth1 -j DROP
  • iptables -A OUTPUT -o eth1 -j DROP

TCP and UDP Protocols

If you want to start seeing how the TCP and UDP protocol works, here are some examples:

Block web access to www.google.es and allow everything else (e.g., ping):

  • iptables -A OUTPUT -d [www.google.es](http://www.google.es/) -p tcp --dport 80 -j DROP

On the other hand, to block FTP access to any IP or domain, and allow everything else:

  • iptables -A OUTPUT -p tcp --dport 21 -j DROP

If you want to block SSH access to IP 192.168.1.50, and allow everything else:

  • iptables -A OUTPUT -d 192.168.1.50 -p tcp --dport 22 -j DROP

To block Telnet access to the 192.168.2.0 subnet, and allow everything else:

  • iptables -A OUTPUT -d 192.168.2.0/24 -p tcp --dport 23 -j DROP

Block access from 192.168.1.50 to our web server:

  • iptables -A INPUT -s 192.168.1.50 -p tcp --dport 80 -j DROP

Block access from 192.168.1.150 and 192.168.1.151 to our SSH server:

  • iptables -A INPUT -s 192.168.1.150,192.168.1.151 -p tcp --dport 22 -j DROP

If you want to block the access of the entire 192.168.2.0/24 subnet to the Telnet protocol (port 23), and allow everything else:

  • iptables -A INPUT -s 192.168.2.0/24 -p tcp --dport 23 -j DROP

Block access from 192.168.1.50 to our web server:

  • iptables -A INPUT -s 192.168.1.50 -p tcp --dport 80 -j DROP

Block access from 192.168.1.150 and 192.168.1.151 to our SSH server:

  • iptables -A INPUT -s 192.168.1.150,192.168.1.151 -p tcp --dport 22 -j DROP

If you want to block access from the entire 192.168.2.0/24 subnet to our telnet service:

  • iptables -A INPUT -s 192.168.2.0/24 -p tcp --dport 23 -j DROP

Block access to our OpenVPN server from everyone except for the IP address 77.77.77.77, which is allowed:

  • iptables -A INPUT -s 77.77.77.77 -p tcp --dport 1194 -j ACCEPT
  • iptables -A INPUT -p tcp --dport 1194 -j DROP

To block DNS access to 8.8.8.8 and allow everything else (e.g., ping):

  • iptables -A OUTPUT -d 8.8.8.8 -p tcp --dport 53 -j DROP
  • iptables -A OUTPUT -d 8.8.8.8 -p udp --dport 53 -j DROP

To block access to port 1194 for any IP or domain and allow everything else:

  • iptables -A INPUT -p udp --dport 1194 -j DROP

We have a DNS server on our system, and we want only devices from the 192.168.1.0/24 subnet to communicate with it, blocking all other access:

  • iptables -A INPUT -s 192.168.1.0/24 -p tcp --dport 53 -j ACCEPT
  • iptables -A INPUT -s 192.168.1.0/24 -p udp --dport 53 -j ACCEPT
  • iptables -A INPUT -p tcp --dport 53 -j DROP
  • iptables -A INPUT -p udp --dport 53 -j DROP

Block access to our web server from the IP range 192.168.100.0/24 coming from the eth0 interface:

  • iptables -A INPUT -s 192.168.100.0/24 -i eth0 -p tcp --dport 80 -j DROP

Block access to our SSH server from the IP range 192.168.100.0/24 coming from the eth1 interface:

  • iptables -A INPUT -s 192.168.100.0/24 -i eth1 -p tcp --dport 22 -j DROP

Advanced Usage Examples

If you want to learn more about iptables, here are some examples using the connlimit module.

Allow only 10 Telnet connections per client:

  • iptables -A INPUT -p tcp --dport 23 -m connlimit --connlimit-above 10 --connlimit-mask 32 -j DROP

Deny connections beyond the fifth web connection made by a client (not very practical, but it's an example):

  • iptables -A INPUT -p tcp --dport 80 -m connlimit --connlimit-upto 5 --connlimit-mask 32 -j DROP

If you want to allow only 10 Telnet connections per client (configured differently from the previous example):

  • iptables -A INPUT -p tcp --dport 23 -m connlimit --connlimit-upto 10 --connlimit-mask 32 -j ACCEPT
  • iptables -A INPUT -p tcp --dport 23 -j DROP

Allow only 10 web connections within the IP range 10.0.0.0/8, and deny if this number is exceeded:

  • iptables -A INPUT -s 10.0.0.0/8 -p tcp --dport 80 -m connlimit --connlimit-above 10 --connlimit-mask 8 -j DROP

If you want to allow only 20 HTTP connections per client, and if exceeded, send a TCP Reset:

  • iptables -A INPUT -p tcp --dport 80 -m connlimit --connlimit-above 20 --connlimit-mask 32 -j REJECT --reject-with tcp-reset

Or this way:

  • iptables -A INPUT -p tcp --syn --dport 80 -m connlimit --connlimit-above 20 --connlimit-mask 32 -j REJECT --reject-with tcp-reset

As you can see, this firewall is very comprehensive and allows for a wide range of advanced configurations to control all incoming and outgoing connections in detail. Also, remember that any changes you make to the iptables configuration are temporary, so you must save them for persistence after server reboots.
