Configuring a Secure Server with SSL/TLS Using OpenSSL

🌱 How to start this project?

This exercise aims to teach students how to set up a secure server using OpenSSL to provide secure communications via SSL/TLS.

Requirements

• A Debian virtual machine installed in VirtualBox. (we will use the previously configured machine in previous classes).

📝 Instructions

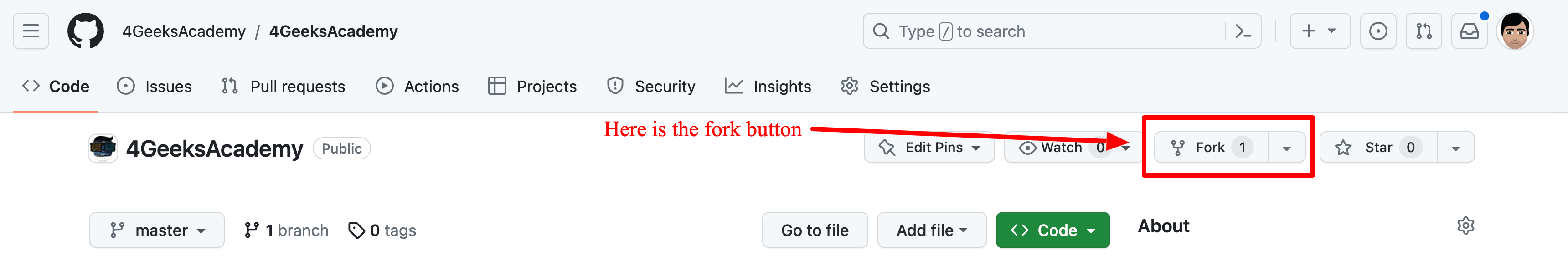

• Open this URL and fork the repository https://github.com/breatheco-de/set-up-an-SSL-in-openSSL-with-a-secure-server

A new repository will be created in your account.

• Clone the newly created repository into your localhost computer.
• Once you have cloned successfully, follow the steps below carefully, one by one.

Step 1: Generate a Private Key and a Certificate Signing Request (CSR):

In an HTTPS connection, the web server needs to prove its identity and encrypt the communication. For this, a digital certificate is used, which contains a public key; this public key is useless without its corresponding private key. The private key is a secret file that allows encrypting and decrypting data. Now, we will generate a private key using OpenSSL, a command-line tool for creating and managing certificates and cryptography.

• Open a terminal and run the following command to generate a 2048-bit RSA private key:

Now we need to make a Certificate Signing Request (CSR). This is a file that contains the public key you want to certify and information about your organization or server (country, city, name, domain, email, etc.).

This file is usually sent to a Certificate Authority (CA), such as Let's Encrypt or DigiCert, to issue a valid digital certificate. In our lab, we will not send it to a CA, but we will sign it ourselves (self-signed). However, the process is the same.

• Use the following command to generate a CSR that will contain the public information to be included in the certificate:

  1openssl req -new -key /etc/ssl/private/myserver.key -out /etc/ssl/certs/myserver.csr

  During the process, you will be prompted to enter information about your organization. (Here is an example of how you can complete it):
  • Country Name (2 letter code): ES
  • State or Province Name (full name): Madrid
  • Locality Name (eg, city): Madrid
  • Organization Name (eg, company): MyCompany
  • Organizational Unit Name (eg, section): IT
  • Common Name (eg, fully qualified host name): my-domain.com
  • Email Address: admin@my-domain.com

Step 2: Sign the CSR to Obtain a Self-Signed Certificate:

Once we have the .csr file (the certificate request), we need to sign it to generate the final .crt certificate. In a real environment, this step would be done by a Certificate Authority (CA), which would verify your identity and sign the CSR to issue a trusted certificate.

• For the purposes of this practice, we will sign the CSR with our own private key to obtain a self-signed certificate, use the following command (This will generate a self-signed certificate valid for 365 days):

Step 3: Configure Apache to Use the SSL Certificate:

Now that we have the certificate (myserver.crt) and the private key (myserver.key), we need to tell Apache to use them when serving content over HTTPS.

• Check the SSL configuration file for Apache:
• Make sure the file contains the following:

Step 4: Enable the SSL Site and SSL Module:

• Use the following commands to enable the SSL module and load the HTTPS site configuration:

Step 5: Update the Hosts File:

• Check the /etc/hosts file on your local machine (from where you access the virtual machine) to ensure that my-domain.com resolves to 127.0.0.1
• Restart the virtual machine to apply all changes

Step 6: Test the Connection:

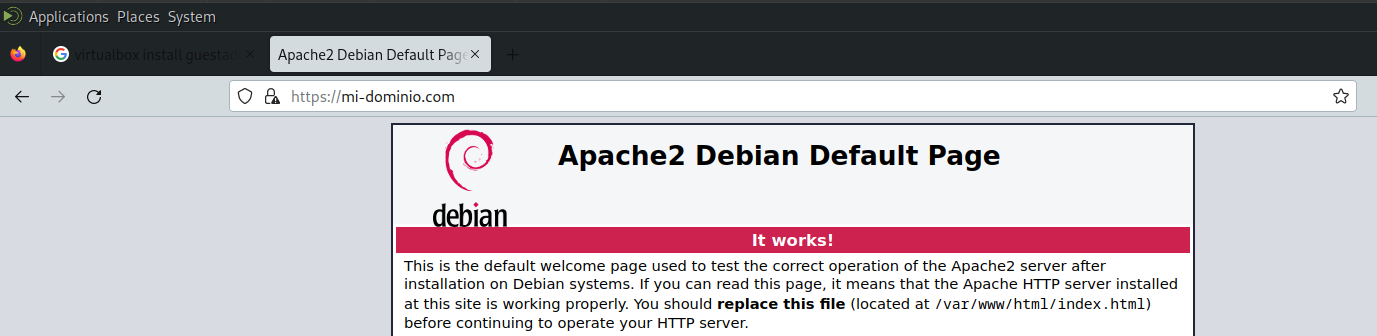

• Open a web browser and enter the URL https://my-domain.com. You should see a security warning due to the self-signed certificate. Accept the risk and continue to see the default Apache page served over HTTPS.

💡 NOTE: For the purposes of this educational exercise, while using localhost with HTTPS (https://localhost/) is sufficient to demonstrate the basic setup of SSL/TLS using OpenSSL, including the configuration of a custom domain like my-domain.com provides a more comprehensive and practical learning experience. This additional step allows understanding how DNS resolution works in a real environment. When generating the SSL/TLS certificate, it is crucial that the domain name (Common Name) matches the domain used to access the server, thus avoiding errors and security warnings in browsers. This reinforces the understanding of essential concepts and enhances the practical skills needed to handle SSL/TLS configurations in a professional environment.

🚛 How to submit this project?

We have developed a script to help you measure your success during this project.

• In the ./assets folder, you will find the script check_ssl.sh that you should copy and paste onto the desktop of your Debian virtual machine.
• Once you have pasted the script check_ssl.sh on your Debian machine, open the terminal and navigate to the directory where the script is located, in our case ./Desktop, and make the script executable (if it is not already). This can be done using the chmod command:
• Run the script specifying its name. You may also provide any necessary arguments. Assuming no additional arguments are needed for this example, you should run:
• Upload your results. Running the script will create a report.json file that you should copy and paste into the root of this project.
